CAP ALUM 2700UF 20% 63V SNAP

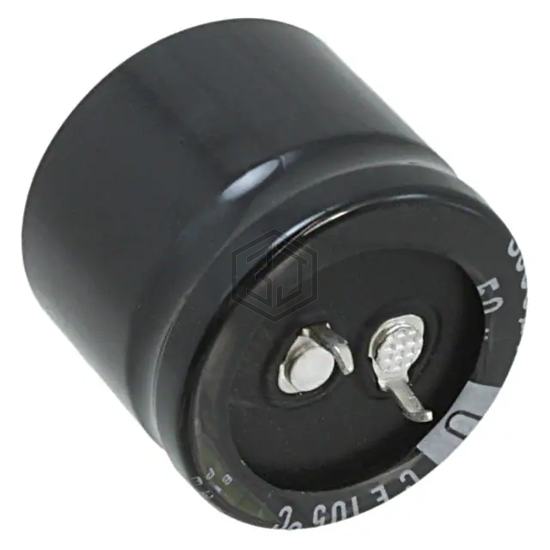

LGU1J272MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 1,485
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.93 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2195 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY1K272MELB30 | Nichicon | CAP ALUM 2700UF 20% 80V SNAP | 86% | View |
| 16ZLS2700MEFC12.5X25 | Rubycon | CAP ALUM 2700UF 20% 16V RADIAL | 71% | View |
| UPA1V272MHD6TN | Nichicon | CAP ALUM 2700UF 20% 35V RADIAL | 71% | View |
| EKZN6R3ELL272MJ20S | United Chemi-Con | CAP ALUM 2700UF 20% 6.3V RADIAL | 69% | View |
| MAL213656272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 25V RADIAL | 66% | View |
| 35YXS2700MEFC16X31.5 | Rubycon | CAP ALUM 2700UF 20% 35V RADIAL | 64% | View |
