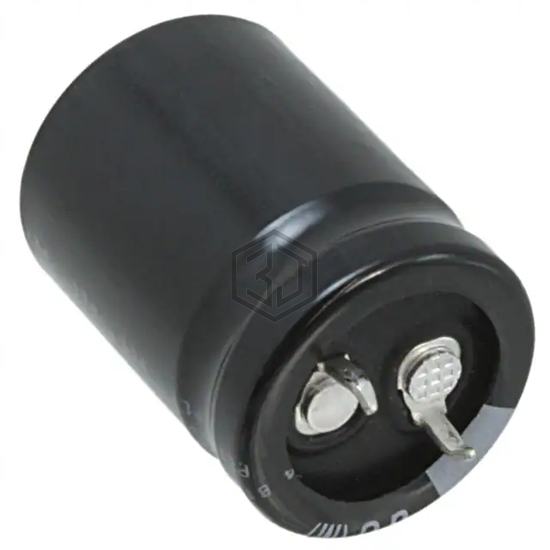

CAP ALUM 1800UF 20% 63V SNAP
LGU1J182MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 6,722
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.58 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.817 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80MXC1800MEFC25X30 | Rubycon | CAP ALUM 1800UF 20% 80V SNAP | 87% | View |
| MAL224636182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 25V RADIAL | 74% | View |
| EGPA500ELL182MU40S | United Chemi-Con | CAP ALUM 1800UF 20% 50V RADIAL | 74% | View |
| MAL224660182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V RADIAL | 74% | View |
| B41890B5188M | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 25V RADIAL | 57% | View |
| 450C182M160AA8 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 160V RADIAL | 56% | View |
