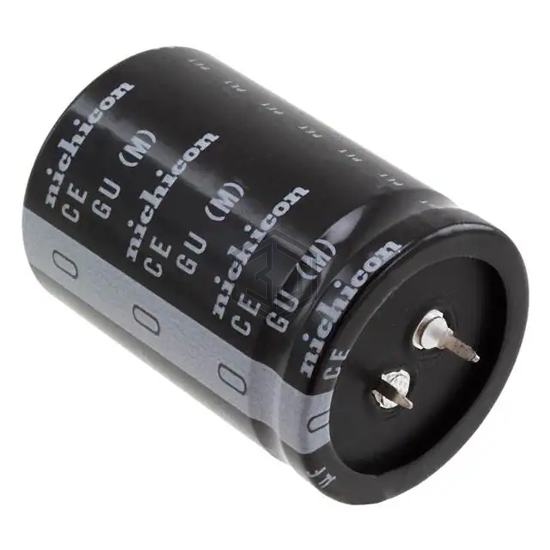

CAP ALUM 10000UF 20% 63V SNAP
LGU1J103MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 7,087
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.69 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.3935 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY1J103MELC50 | Nichicon | CAP ALUM 10000UF 20% 63V SNAP | 90% | View |
| MAL215877103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 40V SNAP | 79% | View |
| EKMH101VQT103MB80U | United Chemi-Con | CAP ALUM 10000UF 20% 100V SNAP | 72% | View |
| 35MXC10000MEFC22X50 | Rubycon | CAP ALUM 10000UF 20% 35V SNAP | 62% | View |
| B41505A7109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 35V SNAP | 60% | View |
| B41252B4109M | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 16V SNAP | 52% | View |
Submit your RFQ for LGU1J103MELC and get a quote within 24 hours.
