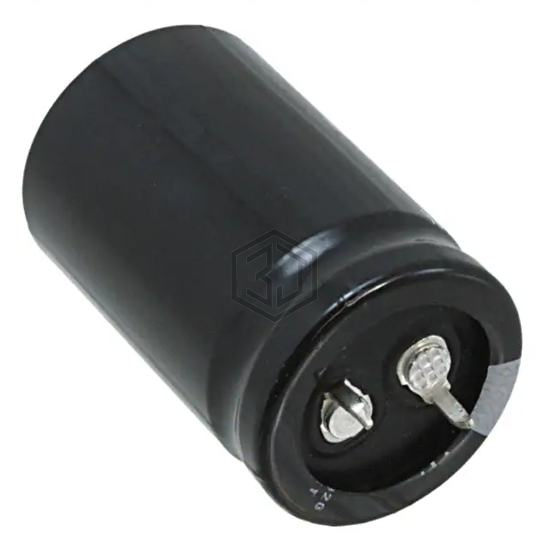

CAP ALUM 5600UF 20% 50V SNAP
LGU1H562MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 9,370
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.81 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.2315 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41252C6568M | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 50V SNAP | 96% | View |
| MAL215821562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 50V SNAP | 85% | View |
| EKYC160ELL562MK30S | United Chemi-Con | CAP ALUM 5600UF 20% 16V RADIAL | 77% | View |
| EKZN160ELL562ML25S | United Chemi-Con | CAP ALUM 5600UF 20% 16V RADIAL | 72% | View |
| EGPA250ELL562MM35S | United Chemi-Con | CAP ALUM 5600UF 20% 25V RADIAL | 71% | View |
| SLP562M080E9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 80V SNAP | 69% | View |
Submit your RFQ for LGU1H562MELA and get a quote within 24 hours.
