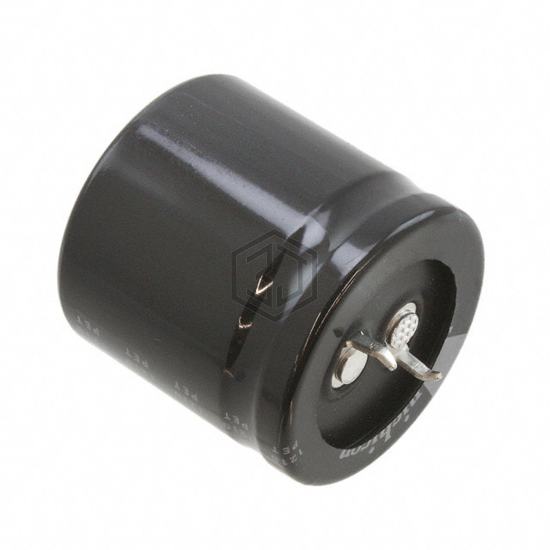

CAP ALUM 4700UF 20% 50V SNAP
LGU1H472MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 7,168
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.58 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.967 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225638472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 63V SNAP | 90% | View |
| EEU-FC1C472SB | Panasonic Electronic Components | CAP ALUM 4700UF 20% 16V RADIAL | 75% | View |
| EKZN160ELL472MM20S | United Chemi-Con | CAP ALUM 4700UF 20% 16V RADIAL | 72% | View |
| 80VXG4700MEFCSN35X45 | Rubycon | CAP ALUM 4700UF 20% 80V SNAP | 72% | View |
| EKYB250ELL472MM25S | United Chemi-Con | CAP ALUM 4700UF 20% 25V RADIAL | 71% | View |
| 25YXS4700MEFC18X31.5 | Rubycon | CAP ALUM 4700UF 20% 25V RADIAL | 68% | View |
Submit your RFQ for LGU1H472MELB and get a quote within 24 hours.
