CAP ALUM 3300UF 20% 50V SNAP

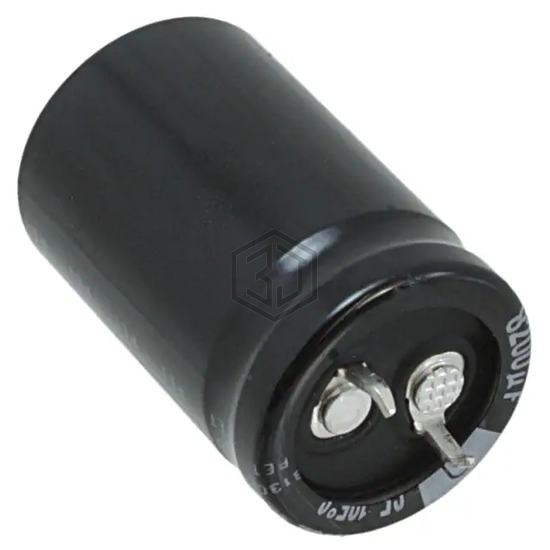

LGU1H332MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 6,673
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.98 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.277 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214861332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 50V RADIAL | 97% | View |
| EKMH500VNN332MQ30T | United Chemi-Con | CAP ALUM 3300UF 20% 50V SNAP | 95% | View |
| 10ZLJ3300M12.5X25 | Rubycon | CAP ALUM 3300UF 20% 10V RADIAL | 68% | View |
| MAL214054332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 10V RADIAL | 58% | View |
| 10YXG3300MEFC10X28 | Rubycon | CAP ALUM 3300UF 20% 10V RADIAL | 56% | View |
| MAL216065332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for LGU1H332MELZ and get a quote within 24 hours.
