CAP ALUM 27000UF 20% 25V SNAP

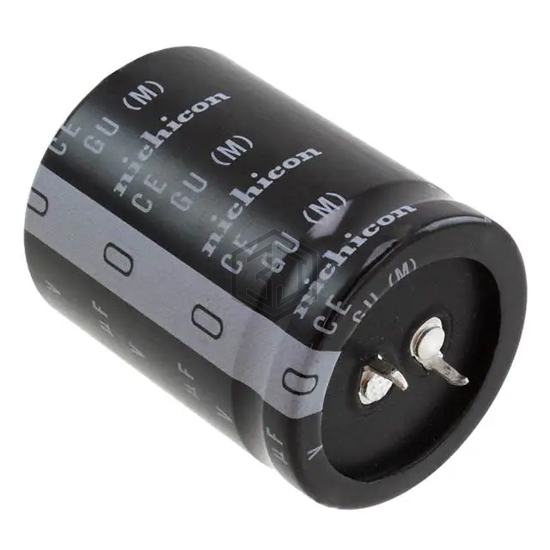

LGU1E273MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 27000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 9,433
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 27000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.75 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.4625 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXG250VNN273MA50S | United Chemi-Con | CAP ALUM 27000UF 20% 25V SNAP | 98% | View |
| SLP273M025H4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 27000UF 20% 25V SNAP | 98% | View |
| 381LX273M016J052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 27000UF 20% 16V SNAP | 80% | View |
| B41605E5279M2 | EPCOS - TDK Electronics | CAP ALUM 27000UF 20% 25V SNAP | 80% | View |
| LP273M016H7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 27000UF 20% 16V SNAP | 80% | View |
| 383LX273M050N062 | Cornell Dubilier Electronics (CDE) | CAP ALUM 27000UF 20% 50V SNAP | 67% | View |
Submit your RFQ for LGU1E273MELC and get a quote within 24 hours.
