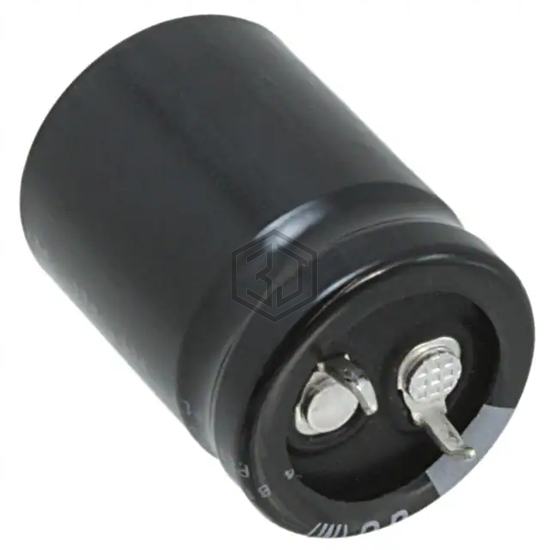

CAP ALUM 8200UF 20% 16V SNAP
LGU1C822MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 9,246
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-HD1C822 | Panasonic Electronic Components | CAP ALUM 8200UF 20% 16V RADIAL | 94% | View |
| 10KXF8200MEFC25X20 | Rubycon | CAP ALUM 8200UF 20% 10V SNAP | 75% | View |
| LGY1V822MELB30 | Nichicon | CAP ALUM 8200UF 20% 35V SNAP | 70% | View |
| VHT8200M10 | NTE Electronics, Inc | CAP ALUM 8200UF 20% 10V RADIAL | 70% | View |
| ELXG350VSN822MR35S | United Chemi-Con | CAP ALUM 8200UF 20% 35V SNAP | 70% | View |
| EEU-FC1A822 | Panasonic Electronic Components | CAP ALUM 8200UF 20% 10V RADIAL | 64% | View |
