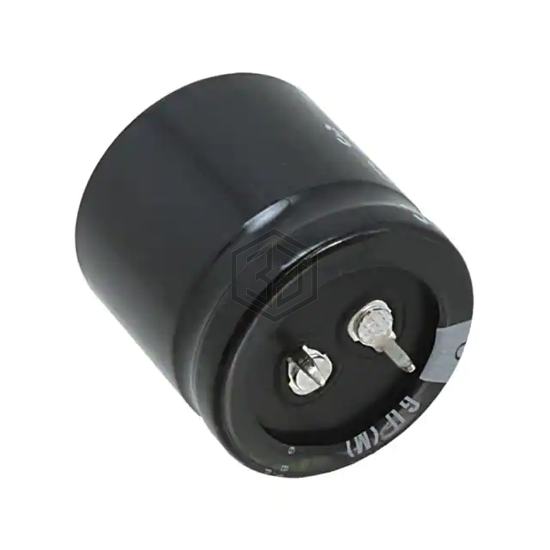

CAP ALUM 18000UF 20% 16V SNAP
LGU1C183MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 18000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 7,978
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 18000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY1C183MELB30 | Nichicon | CAP ALUM 18000UF 20% 16V SNAP | 100% | View |
| LGY1V183MELC40 | Nichicon | CAP ALUM 18000UF 20% 35V SNAP | 72% | View |
| SLP183M025H5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 18000UF 20% 25V SNAP | 72% | View |
| EKMH100VSN183MP35U | United Chemi-Con | CAP ALUM 18000UF 20% 10V SNAP | 70% | View |
| EKZN6R3ELL183MMP1S | United Chemi-Con | CAP ALUM 18000UF 20% 6.3V RADIAL | 68% | View |
| EKMH350VNN183MA40U | United Chemi-Con | CAP ALUM 18000UF 20% 35V SNAP | 62% | View |
Submit your RFQ for LGU1C183MELB and get a quote within 24 hours.
