CAP ALUM 10000UF 20% 16V SNAP

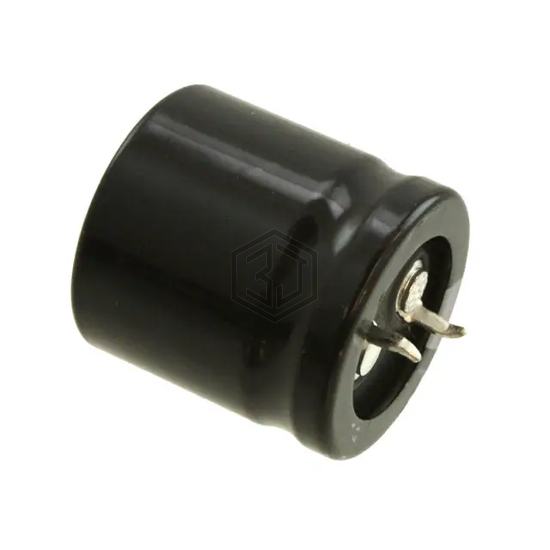

LGU1C103MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 985
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3575 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214865103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V RADIAL | 99% | View |
| EEU-HD1E103 | Panasonic Electronic Components | CAP ALUM 10000UF 20% 25V RADIAL | 83% | View |
| 381LX103M010H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 10V SNAP | 80% | View |
| MAL204854103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V RADIAL | 78% | View |
| B41505A3109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 10V SNAP | 76% | View |
| SLP103M025A7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 25V SNAP | 71% | View |
Submit your RFQ for LGU1C103MELA and get a quote within 24 hours.
