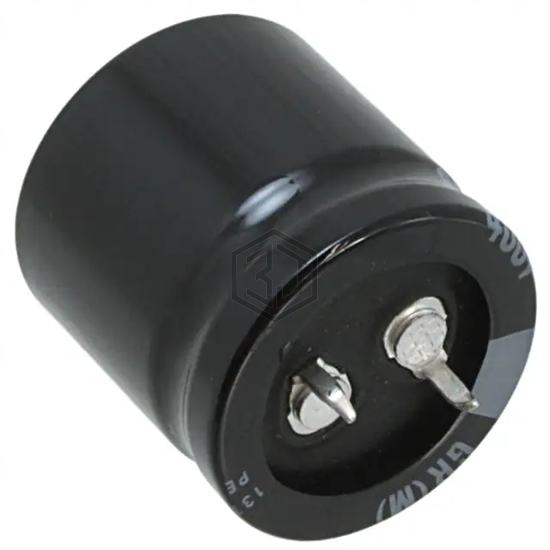

CAP ALUM 82UF 20% 400V SNAP
LGR2G820MELA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 2,206
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 640 mA @ 120 Hz |
| Ripple Current @ High Frequency | 915.2 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215946829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 400V SNAP | 98% | View |
| B43642A5826M087 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 450V SNAP | 93% | View |
| MW2W820MNN1625A4E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 90% | View |
| LGN2H820MELZ35 | Nichicon | CAP ALUM 82UF 20% 500V SNAP | 89% | View |
| 350MXC82MEFC20X30 | Rubycon | CAP ALUM 82UF 20% 350V SNAP | 88% | View |
| 400BXW82MEFR16X30 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 84% | View |
