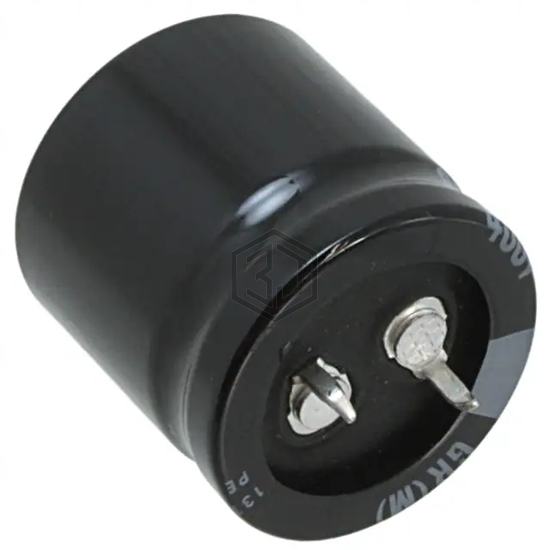

CAP ALUM 68UF 20% 400V SNAP
LGR2G680MELA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 9,155
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 560 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800.8 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420KXW68MEFC16X25 | Rubycon | CAP ALUM 68UF 20% 420V RADIAL | 97% | View |
| 420MXC68MEFC22X25 | Rubycon | CAP ALUM 68UF 20% 420V SNAP | 94% | View |
| 450BXC68MEFC18X31.5 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 92% | View |
| 450KXW68MEFC14.5X40 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 91% | View |
| PK2H680MND2225RY | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 90% | View |
| 420LXW68MEFR12.5X35 | Rubycon | CAP ALUM 68UF 20% 420V RADIAL | 87% | View |
Submit your RFQ for LGR2G680MELA25 and get a quote within 24 hours.
