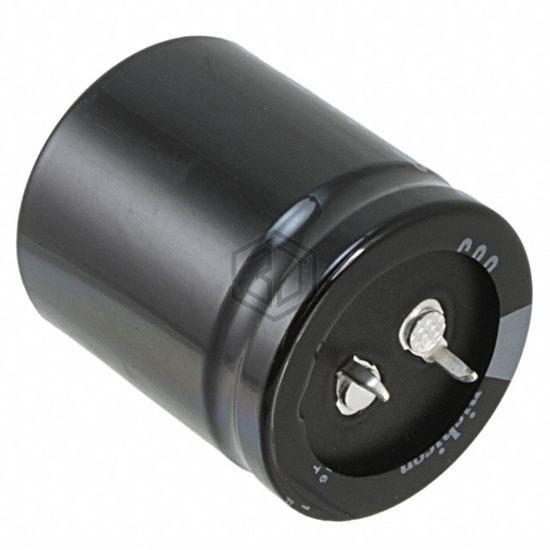

CAP ALUM 680UF 20% 250V SNAP
LGR2E681MELB45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 33
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.55 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2D681MELB | Nichicon | CAP ALUM 680UF 20% 200V SNAP | 91% | View |
| LGG2D681MELZ35 | Nichicon | CAP ALUM 680UF 20% 200V SNAP | 90% | View |
| B43644B2687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 89% | View |
| 860040575012 | Würth Elektronik | CAP ALUM 680UF 20% 35V RADIAL | 70% | View |
| PEG124MG368AQE4 | KEMET | CAP ALUM 680UF 20% 63V AXIAL | 68% | View |
| EEU-FK1V681LB | Panasonic Electronic Components | CAP ALUM 680UF 20% 35V RADIAL TH | 62% | View |
