CAP ALUM 100UF 20% 420V SNAP

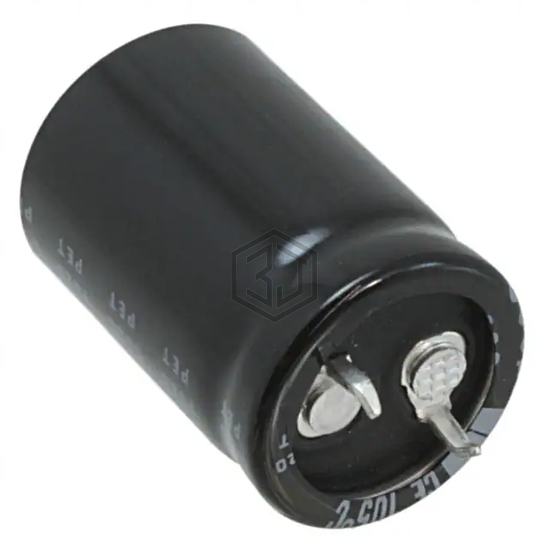

LGNW6101MELY30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 1,813
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 660 mA @ 120 Hz |
| Ripple Current @ High Frequency | 943.8 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LQSW6101MELZ25 | Nichicon | CAP ALUM 100UF 20% 420V SNAP | 100% | View |
| B43505A9107M007 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 400V SNAP | 96% | View |
| 450VXR100MEFCSN30X30 | Rubycon | CAP ALUM 100UF 20% 450V SNAP | 96% | View |
| EKHE401ELL101MU35S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 94% | View |
| LGJ2G101MELB | Nichicon | CAP ALUM 100UF 20% 400V SNAP | 94% | View |
| UPH2W101MHD | Nichicon | CAP ALUM 100UF 20% 450V RADIAL | 92% | View |
Submit your RFQ for LGNW6101MELY30 and get a quote within 24 hours.
