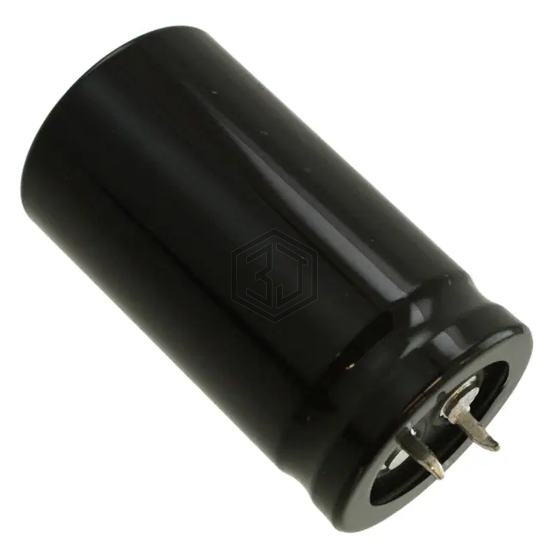

CAP ALUM 390UF 20% 350V SNAP
LGN2V391MELA45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 350V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can - Snap-In.
In Stock: 6,984
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.859 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMW401VSN391MA25S | United Chemi-Con | CAP ALUM 390UF 20% 400V SNAP | 92% | View |
| EKMS251VSN391MP35S | United Chemi-Con | CAP ALUM 390UF 20% 250V SNAP | 84% | View |
| B43644B5397M080 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 79% | View |
| B43508B2397M62 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 200V SNAP | 74% | View |
| 35ZLJ390M8X20 | Rubycon | CAP ALUM 390UF 20% 35V RADIAL | 73% | View |
| EKZN500ELL391MJ25S | United Chemi-Con | CAP ALUM 390UF 20% 50V RADIAL | 71% | View |
