CAP ALUM 330UF 20% 350V SNAP

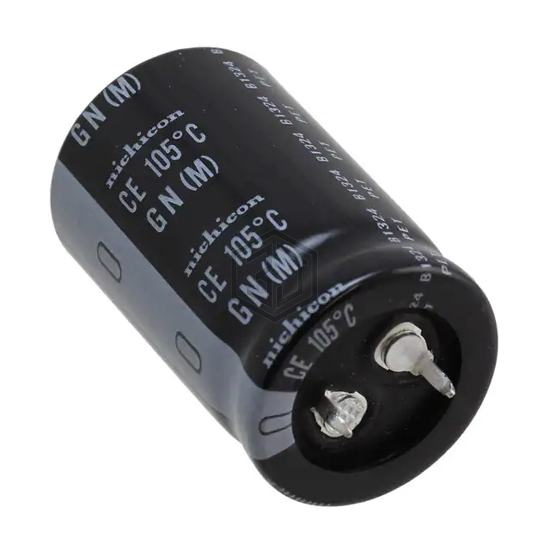

LGN2V331MELA40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 350V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can - Snap-In.
In Stock: 7,724
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.716 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ331M250H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 250V SNAP | 89% | View |
| 250VXR330MEFC30X25 | Rubycon | CAP ALUM 330UF 20% 250V SNAP | 89% | View |
| 250VXG330MEFCSN22X35 | Rubycon | CAP ALUM 330UF 20% 250V SNAP | 74% | View |
| LAK2D331MELB25 | Nichicon | CAP ALUM 330UF 20% 200V SNAP | 72% | View |
| UBW1K331MHD | Nichicon | CAP ALUM 330UF 20% 80V RADIAL | 61% | View |
| UBT1K331MHD8 | Nichicon | CAP ALUM 330UF 20% 80V RADIAL | 61% | View |
Submit your RFQ for LGN2V331MELA40 and get a quote within 24 hours.
