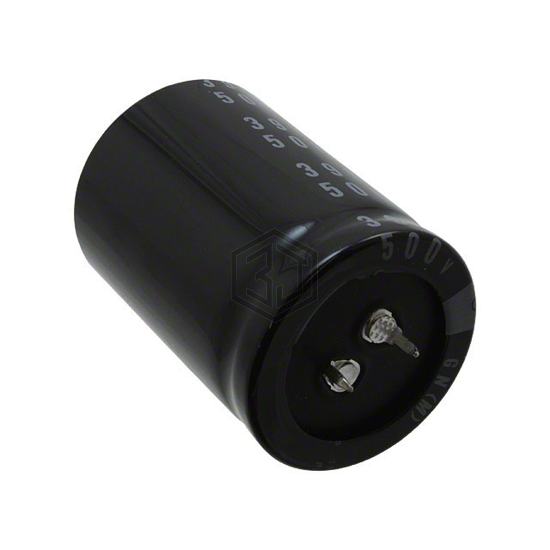

CAP ALUM 390UF 20% 500V SNAP
LGN2H391MELC50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 4,219
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.859 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMW421VSN391MQ45S | United Chemi-Con | CAP ALUM 390UF 20% 420V SNAP | 83% | View |
| LGR2E391MELZ45 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 78% | View |
| LAR2E391MELA30 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 78% | View |
| LGR2E391MELA35 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 78% | View |
| B43254B1397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 160V SNAP | 77% | View |
| 397LMX400M2EG | Cornell Dubilier / Illinois Capacitor | CAP ALUM 390UF 20% 400V SNAP | 75% | View |
