CAP ALUM 150UF 20% 400V SNAP

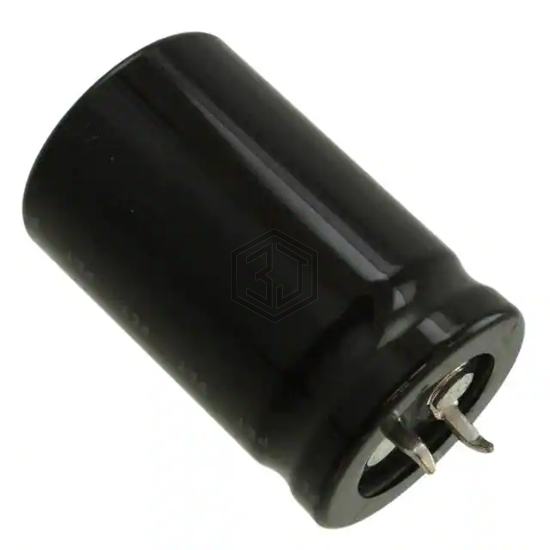

LGN2G151MELZ35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 6,495
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 850 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2155 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504A9157M62 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 99% | View |
| MAL209447151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 450V SNAP | 92% | View |
| 400SXC150MEFCSN30X30 | Rubycon | CAP ALUM 150UF 20% 400V SNAP | 91% | View |
| B43505C5157M67 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 90% | View |
| LAR2W151MELB25 | Nichicon | CAP ALUM 150UF 20% 450V SNAP | 88% | View |
| 450QXW150MEFR16X50 | Rubycon | CAP ALUM 150UF 20% 450V RADIAL | 88% | View |
