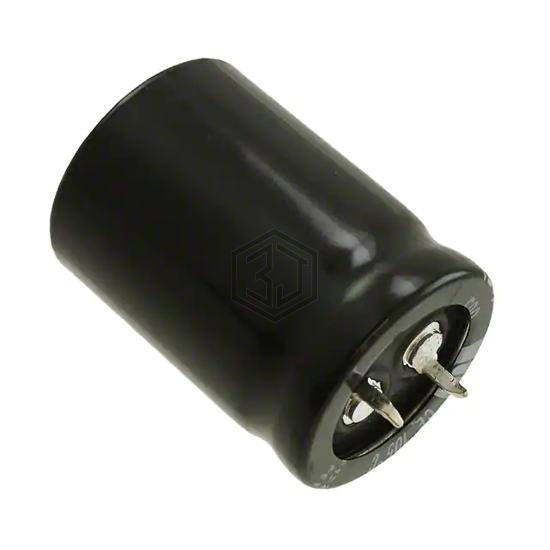

CAP ALUM 560UF 20% 250V SNAP
LGN2E561MELA35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 3,821
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.25 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX561M200J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 200V SNAP | 92% | View |
| LGU2E561MELA | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 91% | View |
| B43508A2567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 90% | View |
| EKYB800ELL561MK35S | United Chemi-Con | CAP ALUM 560UF 20% 80V RADIAL | 72% | View |
| B43508A5567M062 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 65% | View |
| EKY-500ELL561MM15S | United Chemi-Con | CAP ALUM 560UF 20% 50V RADIAL | 65% | View |
