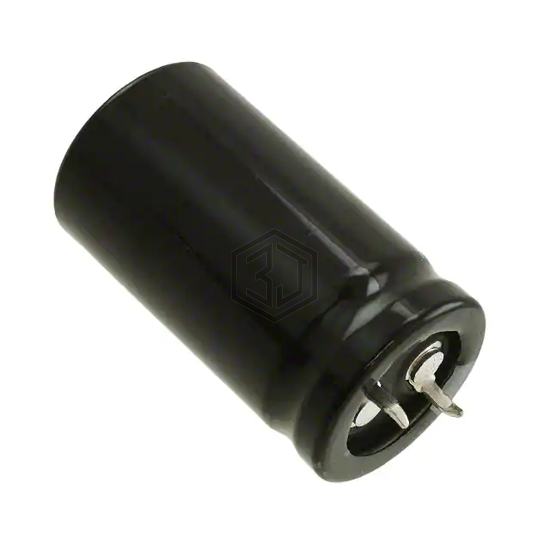

CAP ALUM 470UF 20% 250V SNAP
LGN2E471MELZ40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 6,451
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 477LMU250M2EC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 250V SNAP | 100% | View |
| LGU2D471MELY | Nichicon | CAP ALUM 470UF 20% 200V SNAP | 92% | View |
| B43505A2477M60 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 250V SNAP | 92% | View |
| B43642A2477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 200V SNAP | 91% | View |
| MAL225926471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 400V SNAP | 67% | View |
| VHT470M10 | NTE Electronics, Inc | CAP ALUM 470UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for LGN2E471MELZ40 and get a quote within 24 hours.
