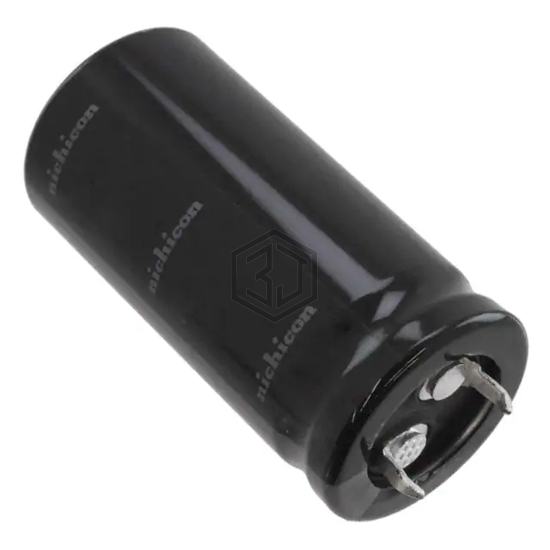

CAP ALUM 820UF 20% 200V SNAP
LGN2D821MELZ45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 2,138
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.04 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.06 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2D821MELA35 | Nichicon | CAP ALUM 820UF 20% 200V SNAP | 100% | View |
| B43254A2827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 200V SNAP | 96% | View |
| 381LQ821M180J042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 180V SNAP | 94% | View |
| EEU-FS1H821L | Panasonic Electronic Components | CAP ALUM 820UF 20% 50V RADIAL | 75% | View |
| 80ZLH820MEFCGC18X25 | Rubycon | CAP ALUM 820UF 20% 80V RADIAL | 58% | View |
| RF1E821MP51016EU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 55% | View |
Submit your RFQ for LGN2D821MELZ45 and get a quote within 24 hours.
