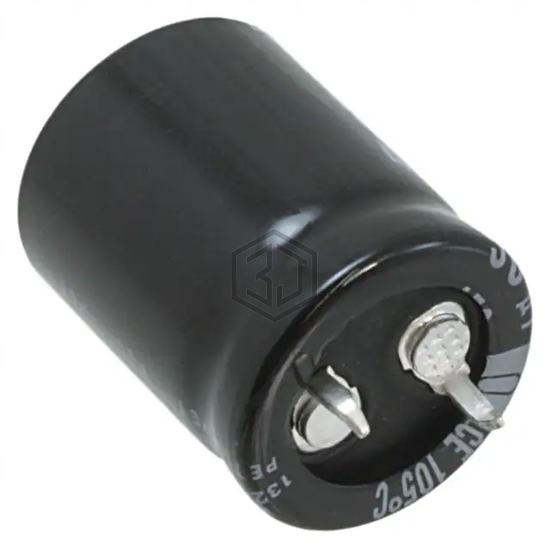

CAP ALUM 270UF 20% 200V SNAP
LGN2D271MELY25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 148
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 990 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.485 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504E2277M007 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 200V SNAP | 98% | View |
| LGJ2C271MELA | Nichicon | CAP ALUM 270UF 20% 160V SNAP | 93% | View |
| B43504A2277M62 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 250V SNAP | 87% | View |
| B43504A2277M80 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 250V SNAP | 87% | View |
| 220MXG270MEFCSN22X25 | Rubycon | CAP ALUM 270UF 20% 220V SNAP | 84% | View |
| 35ZLJ270MT810X12.5 | Rubycon | CAP ALUM 270UF 20% 35V RADIAL | 72% | View |
Submit your RFQ for LGN2D271MELY25 and get a quote within 24 hours.
