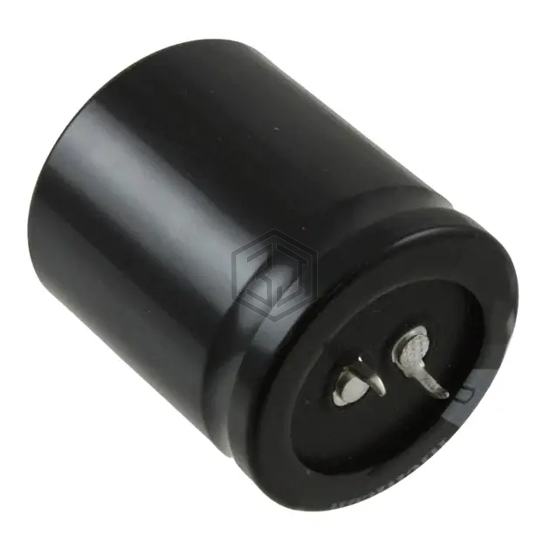

CAP ALUM 1800UF 20% 200V SNAP
LGN2D182MELC40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,080
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.62 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508B2188M62 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 200V SNAP | 94% | View |
| LGN2Z182MELB45 | Nichicon | CAP ALUM 1800UF 20% 180V SNAP | 90% | View |
| B43508E2188M | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 250V SNAP | 87% | View |
| EGPD500ELL182MM25H | United Chemi-Con | CAP ALUM 1800UF 20% 50V RADIAL | 72% | View |
| EEU-FK1V182L | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RAD TH | 62% | View |
| 100MXG1800MEFCSN20X35 | Rubycon | CAP ALUM 1800UF 20% 100V SNAP | 56% | View |
Submit your RFQ for LGN2D182MELC40 and get a quote within 24 hours.
