CAP ALUM 1500UF 20% 160V SNAP

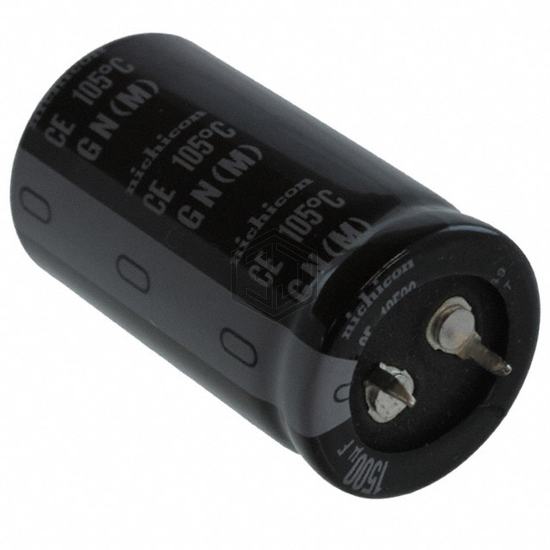

LGN2C152MELA45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 8,627
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.75 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43509B2158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 89% | View |
| B43504E2158M62 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 81% | View |
| B43642C2158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 80% | View |
| B41890A6158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 50V RADIAL | 71% | View |
| LGW2D152MELB45 | Nichicon | CAP ALUM 1500UF 20% 200V SNAP | 64% | View |
| UPA1V152MHD6TN | Nichicon | CAP ALUM 1500UF 20% 35V RADIAL | 62% | View |
Submit your RFQ for LGN2C152MELA45 and get a quote within 24 hours.
