CAP ALUM 560UF 20% 450V SNAP

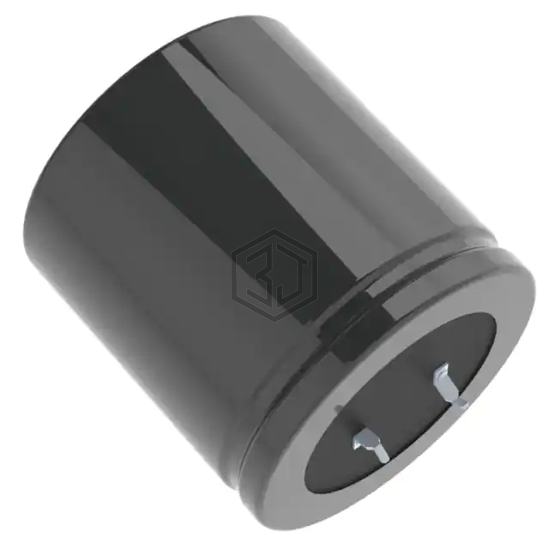

LGM2W561MELC35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 9,134
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EET-HD2W561LJ | Panasonic Electronic Components | CAP ALUM 560UF 20% 450V SNAP | 85% | View |
| EKMS401VSN561MA35S | United Chemi-Con | CAP ALUM 560UF 20% 400V SNAP | 78% | View |
| EEU-FC1V561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V RADIAL | 68% | View |
| LGG2D561MELZ30 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 65% | View |
| LGN2C561MELZ30 | Nichicon | CAP ALUM 560UF 20% 160V SNAP | 64% | View |
| 601D567G060GL3 | Vishay Sprague | CAP ALUM 560UF 60V AXIAL | 56% | View |
