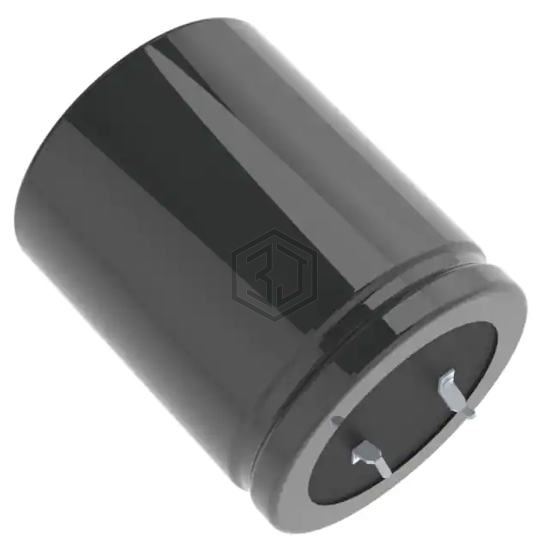

CAP ALUM 390UF 20% 450V SNAP
LGM2W391MELB35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 4,370
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 900 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LQS2W391MELB50 | Nichicon | CAP ALUM 390UF 20% 450V SNAP | 81% | View |
| 450NXG390MEFC35X40 | Rubycon | CAP ALUM 390UF 20% 450V SNAP | 75% | View |
| 35ZLH390MEFCT78X20 | Rubycon | CAP ALUM 390UF 20% 35V RADIAL | 69% | View |
| B43544A6397M067 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 500V SNAP | 67% | View |
| LGJ2Z391MELC15 | Nichicon | CAP ALUM 390UF 20% 180V SNAP | 62% | View |
| LGX2E391MELZ35 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 60% | View |
