CAP ALUM 270UF 20% 450V SNAP

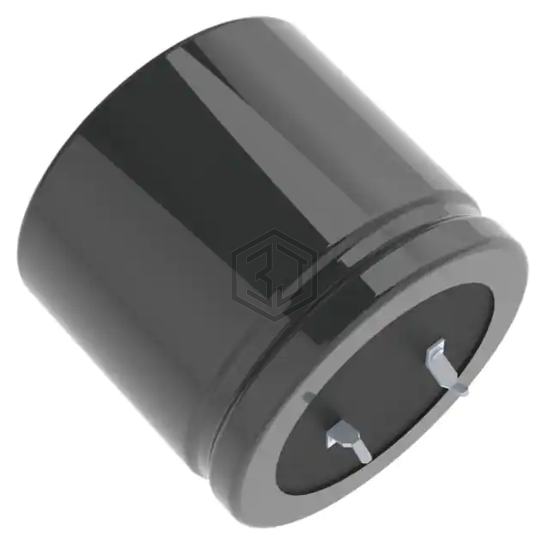

LGM2W271MELB25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 4,949
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.083" (27.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HU2W271MCYS4WPEC | AIC tech Inc. | CAP ALUM 270UF 20% 450V SNAP | 100% | View |
| EKMM451VSN271AA35U | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 78% | View |
| PL2W271MND3030 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 77% | View |
| B43508C9277M60 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 400V SNAP | 77% | View |
| 385MXC270MEFC25X45 | Rubycon | CAP ALUM 270UF 20% 385V SNAP | 75% | View |
| 100YXH270MEFCGC16X25 | Rubycon | CAP ALUM 270UF 20% 100V RADIAL | 70% | View |
