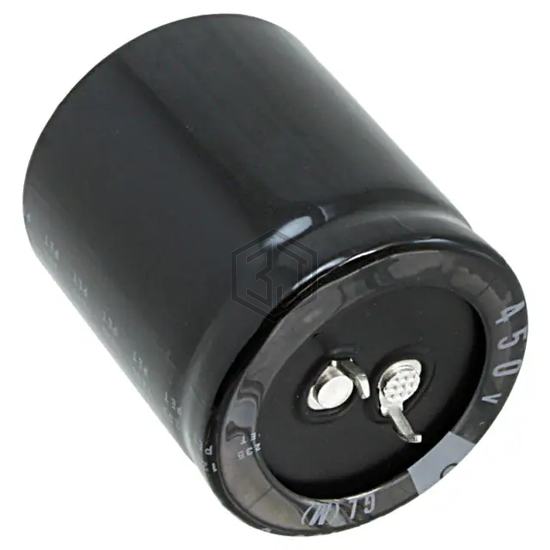

CAP ALUM 560UF 20% 450V SNAP
LGL2W561MELC40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 5,658
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.66 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3738 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ561M450A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 450V SNAP | 94% | View |
| EKMM201VSN561MQ35S | United Chemi-Con | CAP ALUM 560UF 20% 200V SNAP | 78% | View |
| EEU-FR1J561S | Panasonic Electronic Components | CAP ALUM 560UF 20% 63V RADIAL | 76% | View |
| 100ZLH560MEFCGC16X35.5 | Rubycon | CAP ALUM 560UF 20% 100V RADIAL | 73% | View |
| 860040575011 | Würth Elektronik | CAP ALUM 560UF 20% 35V RADIAL | 70% | View |
| B43508B2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 67% | View |
Submit your RFQ for LGL2W561MELC40 and get a quote within 24 hours.
