CAP ALUM 470UF 20% 450V SNAP

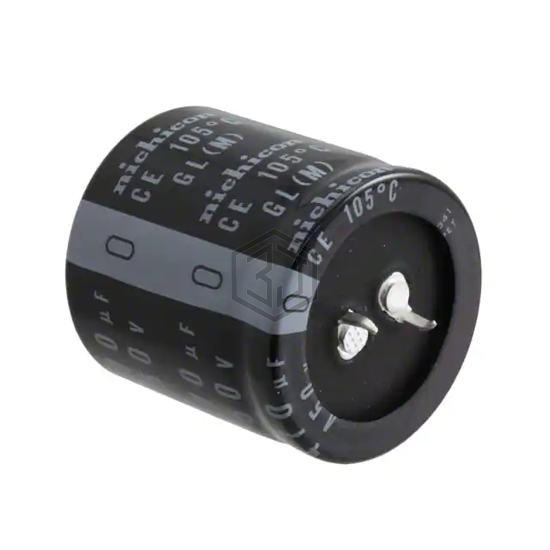

LGL2W471MELC35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 4,343
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.48 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1164 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP471M450H4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 450V SNAP | 100% | View |
| LGX2H471MELC50 | Nichicon | CAP ALUM 470UF 20% 500V SNAP | 93% | View |
| B43504B9477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 400V SNAP | 87% | View |
| B43515B9477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 400V SNAP | 83% | View |
| B43508G2477M2 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 250V SNAP | 71% | View |
| EKZE350EC3471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 64% | View |
Submit your RFQ for LGL2W471MELC35 and get a quote within 24 hours.
