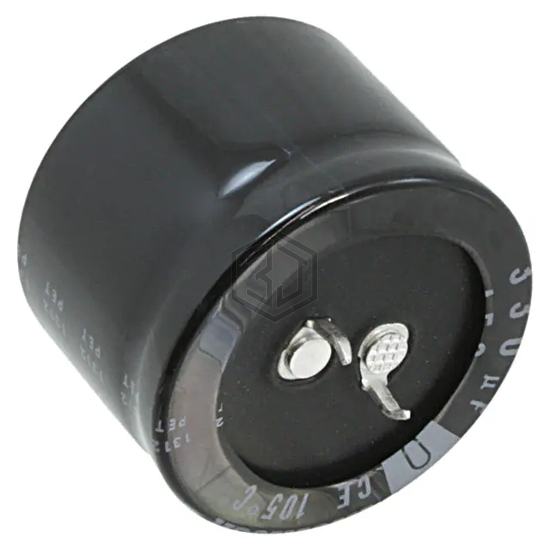

CAP ALUM 330UF 20% 450V SNAP
LGL2W331MELC25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,986
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.07 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2G331MELB35 | Nichicon | CAP ALUM 330UF 20% 400V SNAP | 85% | View |
| EEU-FS1J331L | Panasonic Electronic Components | CAP ALUM 330UF 20% 63V RADIAL | 71% | View |
| 672D337F025DT5D | Vishay Sprague | CAP ALUM 330UF 25V RADIAL | 67% | View |
| EEU-FM1H331L | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V RADIAL | 60% | View |
| 25ZLG330MEFCTA8X16 | Rubycon | CAP ALUM 330UF 20% 25V RADIAL | 57% | View |
| MAL212027331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 40V AXIAL | 56% | View |
Submit your RFQ for LGL2W331MELC25 and get a quote within 24 hours.
