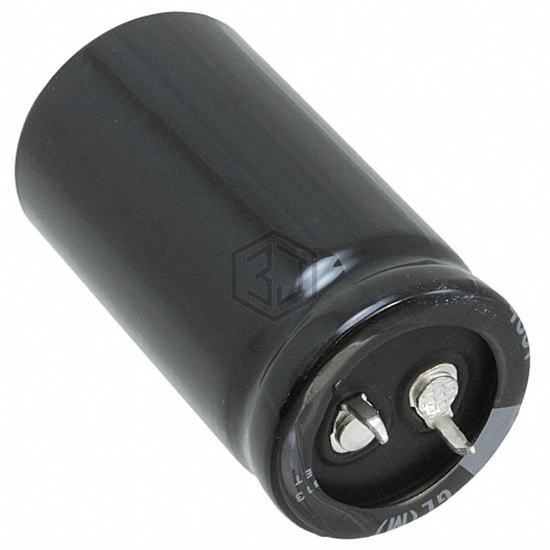

CAP ALUM 330UF 20% 450V SNAP
LGL2W331MELA45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,023
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6016 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LHM331M2W---3535S | Surge | CAP ALUM 450V POLAR | 91% | View |
| ETXH401VSN331MR45S | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 90% | View |
| B41858C7337M8 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 35V RADIAL | 56% | View |
| 100ZLH330MEFC12.5X40 | Rubycon | CAP ALUM 330UF 20% 100V RADIAL | 56% | View |
| 63RX30330MG412.5X25 | Rubycon | CAP ALUM 330UF 20% 63V RADIAL | 56% | View |
| 16ZLG330MEFC8X11.5 | Rubycon | CAP ALUM 330UF 20% 16V RADIAL | 51% | View |
Submit your RFQ for LGL2W331MELA45 and get a quote within 24 hours.
