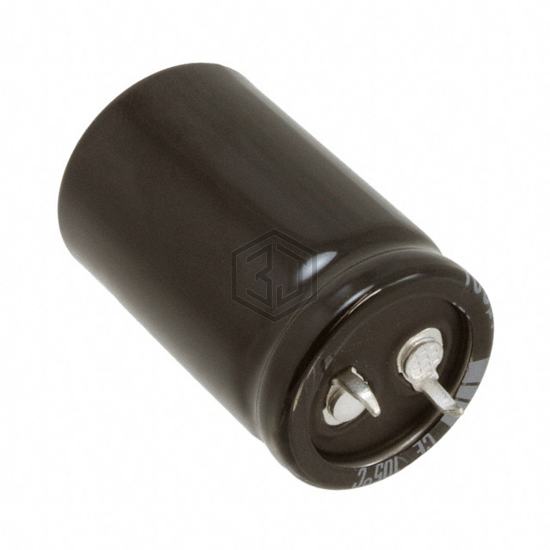

CAP ALUM 180UF 20% 450V SNAP
LGL2W181MELZ35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 5,143
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 770 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1011 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGZ2W181MELC35 | Nichicon | CAP ALUM 180UF 20% 450V SNAP | 94% | View |
| LAS2G181MELA30 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 91% | View |
| B43504A5187M60 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 91% | View |
| LGU2G181MELA | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 85% | View |
| 450QXW180MEFR18X45 | Rubycon | CAP ALUM 180UF 20% 450V RADIAL | 82% | View |
| 400BXW180MEFR18X40 | Rubycon | CAP ALUM 180UF 20% 400V RADIAL | 71% | View |
Submit your RFQ for LGL2W181MELZ35 and get a quote within 24 hours.
