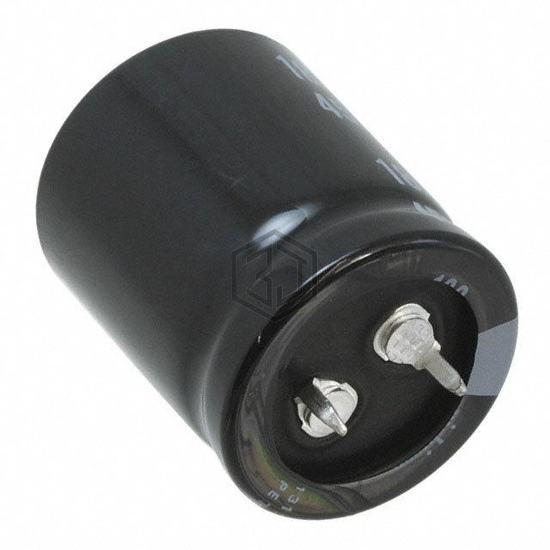

CAP ALUM 180UF 20% 450V SNAP
LGL2W181MELA30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 4,618
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 770 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1011 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215936181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 400V SNAP | 86% | View |
| UCP2W181MHD | Nichicon | CAP ALUM 180UF 20% 450V RADIAL | 82% | View |
| B43545A9187M000 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 400V SNAP | 81% | View |
| 450VXS180MEFC25X35 | Rubycon | CAP ALUM 180UF 20% 450V SNAP | 77% | View |
| EEU-FR1V181 | Panasonic Electronic Components | CAP ALUM 180UF 20% 35V RADIAL | 72% | View |
| MAL219366181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 400V SNAP | 72% | View |
Submit your RFQ for LGL2W181MELA30 and get a quote within 24 hours.
