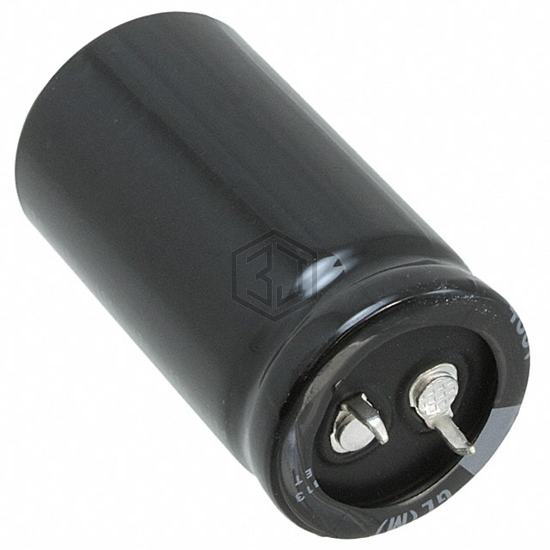

CAP ALUM 470UF 20% 400V SNAP
LGL2G471MELA45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 4,646
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.145 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKX2G471MESB50 | Nichicon | CAP ALUM 470UF 20% 400V SNAP | 95% | View |
| LGU2W471MELC | Nichicon | CAP ALUM 470UF 20% 450V SNAP | 86% | View |
| B43544E9477M002 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 400V SNAP | 79% | View |
| B43508G2477M82 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 250V SNAP | 76% | View |
| 860040675011 | Würth Elektronik | CAP ALUM 470UF 20% 50V RADIAL | 72% | View |
| B41858C6477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 50V RADIAL | 55% | View |
