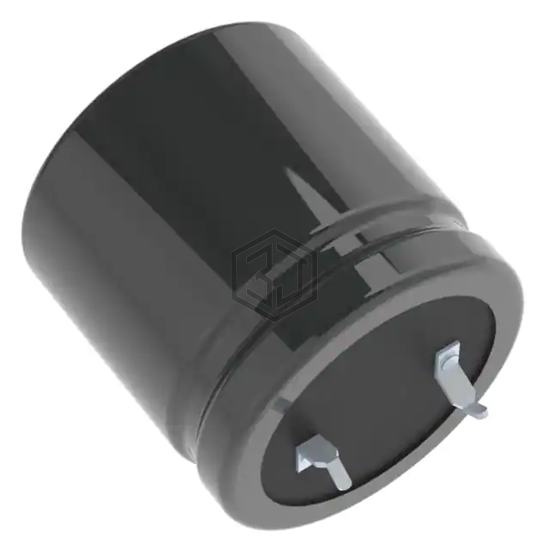

CAP ALUM 39UF 20% 400V SNAP
LGJ2G390MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 5,277
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 320 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LAK2G390MELZ20 | Nichicon | CAP ALUM 39UF 20% 400V SNAP | 98% | View |
| EKXJ401ELL390MK25S | United Chemi-Con | CAP ALUM 39UF 20% 400V RADIAL | 94% | View |
| EKWA421ELL390MJ35S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 93% | View |
| UCS2W390MND9 | Nichicon | CAP ALUM 39UF 20% 450V RADIAL | 87% | View |
| EKXJ451ELL390MM20S | United Chemi-Con | CAP ALUM 39UF 20% 450V RADIAL | 85% | View |
| EEU-FS2A390 | Panasonic Electronic Components | CAP ALUM 39UF 20% 100V RADIAL | 71% | View |
Submit your RFQ for LGJ2G390MELY and get a quote within 24 hours.
