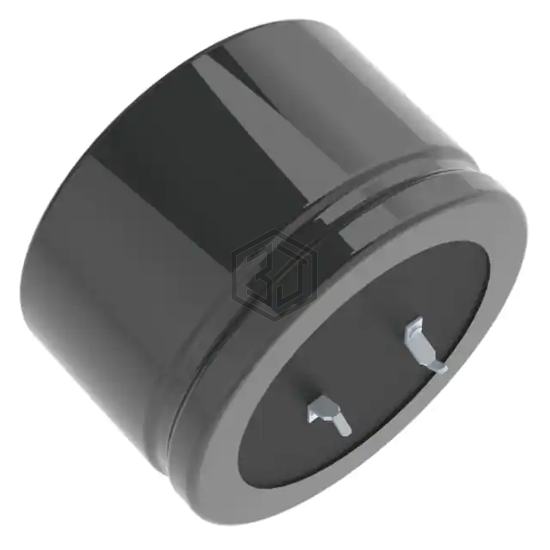

CAP ALUM 180UF 20% 400V SNAP
LGJ2G181MELC20 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 5,111
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.16 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6588 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 861021484016 | Würth Elektronik | CAP ALUM 180UF 20% 450V SNAP | 95% | View |
| PL2G181MND2530 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 95% | View |
| EKMT421VSN181MP40S | United Chemi-Con | CAP ALUM 180UF 20% 420V SNAP | 92% | View |
| 450CXW180MEFR18X45 | Rubycon | CAP ALUM 180UF 20% 450V RADIAL | 88% | View |
| MAL219357181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 450V SNAP | 88% | View |
| B43252B4187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 350V SNAP | 85% | View |
Submit your RFQ for LGJ2G181MELC20 and get a quote within 24 hours.
