CAP ALUM 68UF 20% 315V SNAP

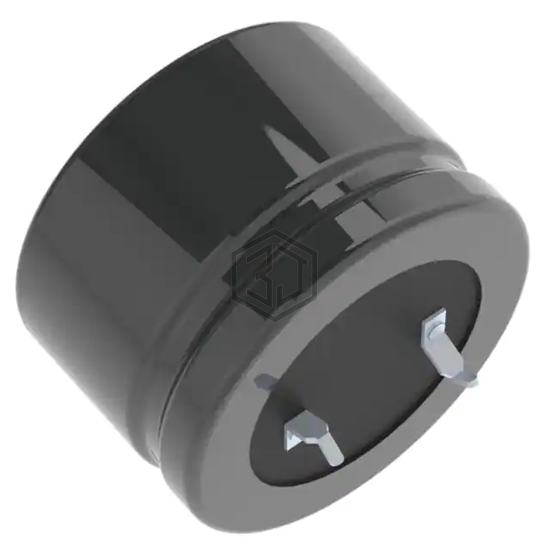

LGJ2F680MELA15 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 1,730
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LASW6680MELZ25 | Nichicon | CAP ALUM 68UF 20% 420V SNAP | 84% | View |
| 400BXC68MEFCCE18X25 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 78% | View |
| 100ZLH68MEFC8X20 | Rubycon | CAP ALUM 68UF 20% 100V RADIAL | 69% | View |
| UCY2D680MHD3TO | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 65% | View |
| EEU-FC1H680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 50V RADIAL | 64% | View |
| 500HXW68MEFR14.5X45 | Rubycon | CAP ALUM 68UF 20% 500V RADIAL | 62% | View |
Submit your RFQ for LGJ2F680MELA15 and get a quote within 24 hours.
