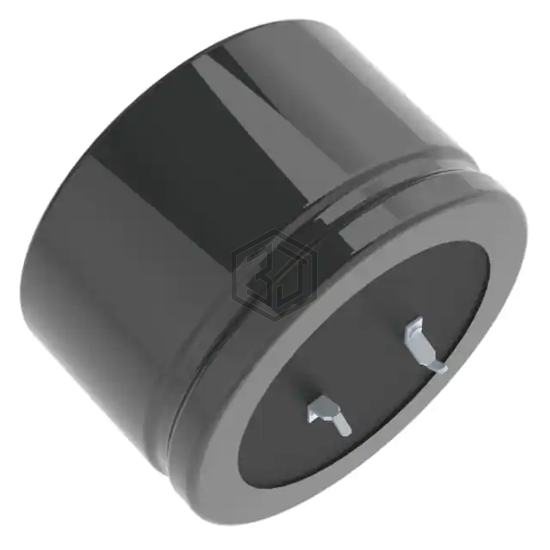

CAP ALUM 220UF 20% 315V SNAP
LGJ2F221MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 2,615
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 900 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.287 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGG2G221MELA30 | Nichicon | CAP ALUM 220UF 20% 400V SNAP | 90% | View |
| B43504A2227M62 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 250V SNAP | 90% | View |
| LAS2G221MELB30 | Nichicon | CAP ALUM 220UF 20% 400V SNAP | 83% | View |
| MAL215956221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 400V SNAP | 82% | View |
| 450MXC220MEFCSN35X30 | Rubycon | CAP ALUM 220UF 20% 450V SNAP | 80% | View |
| LQS2W221MELB30 | Nichicon | CAP ALUM 220UF 20% 450V SNAP | 80% | View |
Submit your RFQ for LGJ2F221MELC and get a quote within 24 hours.
