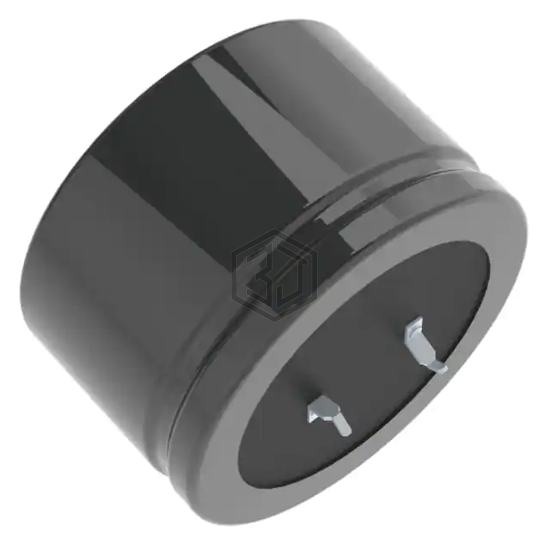

CAP ALUM 180UF 20% 315V SNAP
LGJ2F181MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 9,079
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 850 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2155 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504A5187M60 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 79% | View |
| ELXM451VSN181MA30S | United Chemi-Con | CAP ALUM 180UF 20% 450V SNAP | 78% | View |
| 450QXW180MEFR18X45 | Rubycon | CAP ALUM 180UF 20% 450V RADIAL | 76% | View |
| 160TXW180MEFR12.5X30 | Rubycon | CAP ALUM 180UF 20% 160V RADIAL | 74% | View |
| 400BXW180MEFR18X40 | Rubycon | CAP ALUM 180UF 20% 400V RADIAL | 72% | View |
| EEU-FS1J181L | Panasonic Electronic Components | CAP ALUM 180UF 20% 63V RADIAL | 66% | View |
