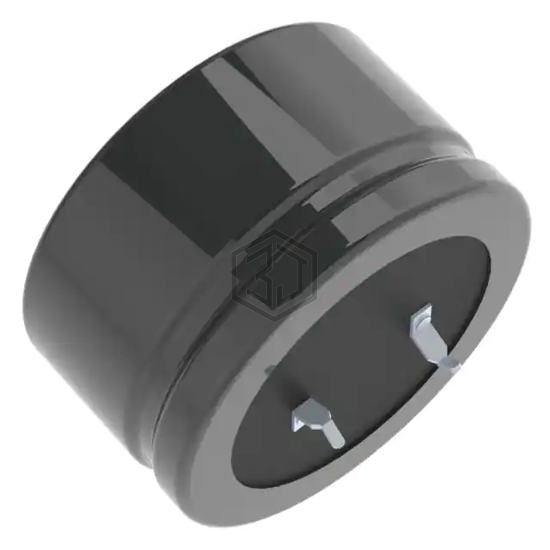

CAP ALUM 150UF 20% 250V SNAP
LGJ2E151MELB15 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 7,810
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX151M315J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 315V SNAP | 89% | View |
| B43504A157M60 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 420V SNAP | 72% | View |
| MAL225966151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 400V SNAP | 65% | View |
| TE1212-E3 | Vishay Sprague | CAP ALUM 150UF 25V AXIAL | 56% | View |
| 672D157F060ET5D | Vishay Sprague | CAP ALUM 150UF 60V RADIAL | 56% | View |
| 600D157G050DL5 | Vishay Sprague | CAP ALUM 150UF 50V AXIAL | 56% | View |
