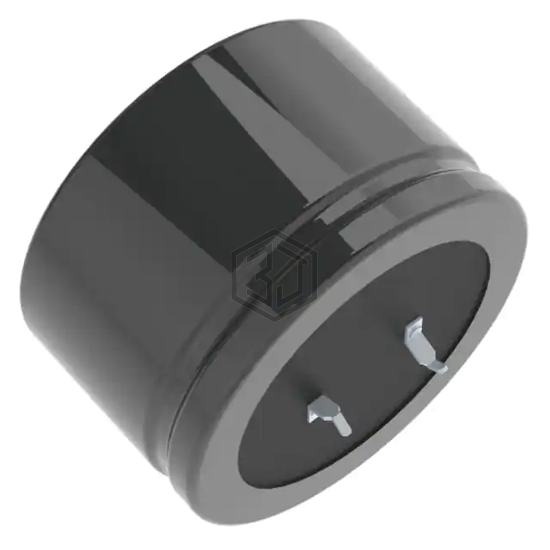

CAP ALUM 680UF 20% 200V SNAP
LGJ2D681MELC20 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 4,378
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.52 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.28 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508B2687M62 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 97% | View |
| LGN2P681MELZ45 | Nichicon | CAP ALUM 680UF 20% 220V SNAP | 90% | View |
| B43508H2687M7 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 87% | View |
| MAL225982681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 200V SNAP | 74% | View |
| MAL211947681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 40V AXIAL | 57% | View |
| EEU-FS1H681 | Panasonic Electronic Components | CAP ALUM 680UF 20% 50V RADIAL | 53% | View |
Submit your RFQ for LGJ2D681MELC20 and get a quote within 24 hours.
