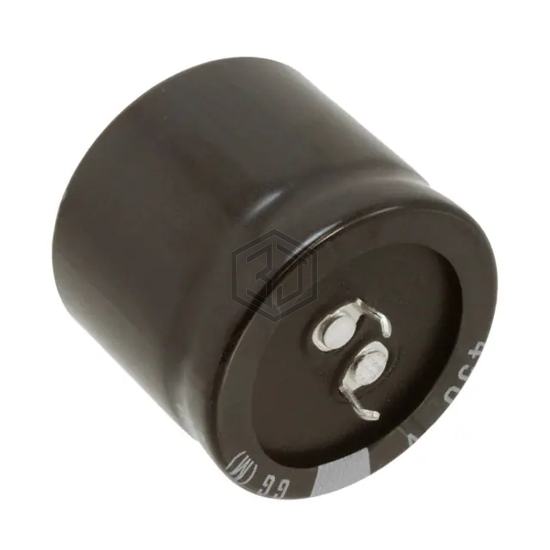

CAP ALUM 330UF 20% 420V SNAP
LGGW6331MELC30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 8,071
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.42 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.633 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL209426331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 400V SNAP | 96% | View |
| 420MXK330MEFC30X30 | Rubycon | CAP ALUM 330UF 20% 420V SNAP | 90% | View |
| LGU2F331MELB | Nichicon | CAP ALUM 330UF 20% 315V SNAP | 88% | View |
| MAL219357331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 450V SNAP | 77% | View |
| SLP331M220C1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 220V SNAP | 74% | View |
| 200MXC330MEFCSN20X30 | Rubycon | CAP ALUM 330UF 20% 200V SNAP | 73% | View |
