CAP ALUM 2200UF 20% 180V SNAP

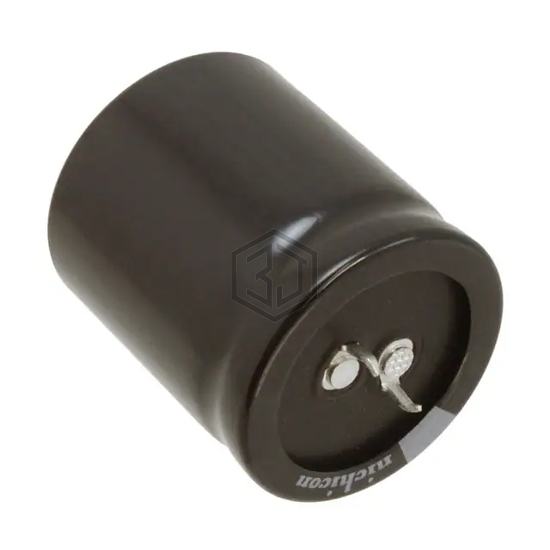

LGG2Z222MELC40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 3,821
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.35 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25ZLJ2200MG412.5X30 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 72% | View |
| MAL215868222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V SNAP | 71% | View |
| UPM1V222MHD1CV | Nichicon | CAP ALUM 35V POLAR | 64% | View |
| 25YXH2200MEFC18X20 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 60% | View |
| EEU-FK1V222S | Panasonic Electronic Components | CAP ALUM 2200UF 20% 35V RAD TH | 59% | View |
| 63MXC2200MEFCSN25X25 | Rubycon | CAP ALUM 2200UF 20% 63V SNAP | 50% | View |
