CAP ALUM 1000UF 20% 180V SNAP

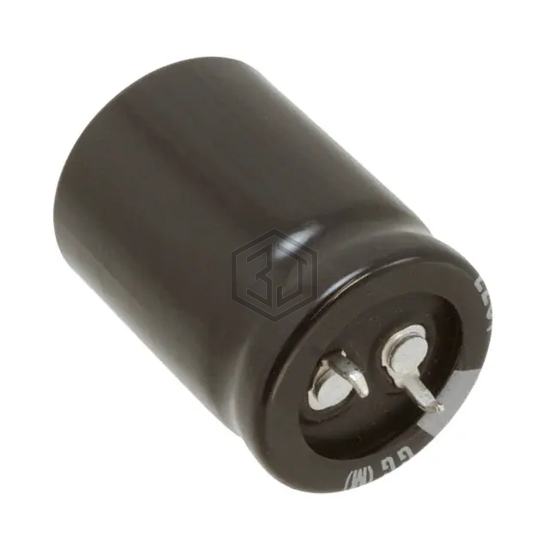

LGG2Z102MELA35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 2,005
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.075 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D108F015ET3D | Vishay Sprague | CAP ALUM 1000UF 15V RADIAL | 77% | View |
| MAL225982102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 200V SNAP | 73% | View |
| LGU2A102MELA | Nichicon | CAP ALUM 1000UF 20% 100V SNAP | 63% | View |
| 30D108M063GK2AE3 | Vishay Sprague | CAP ALUM 1000UF 20% 63V AXIAL | 63% | View |
| RXW102M1HBK-1625S | SURGE | CAP ALUM 1000UF 20% 50V RADIAL | 61% | View |
| MAL213661102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 57% | View |
Submit your RFQ for LGG2Z102MELA35 and get a quote within 24 hours.
