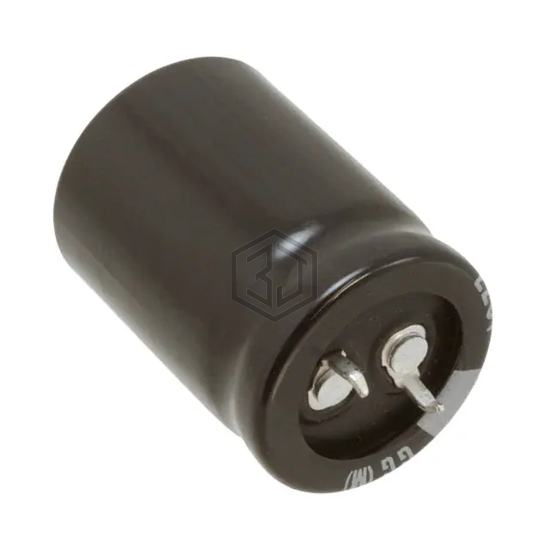

CAP ALUM 680UF 20% 220V SNAP
LGG2P681MELA35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 220V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 220 V, package / case Radial, Can - Snap-In.
In Stock: 3,991
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 220 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.67 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KY10VB681M10X12LL | United Chemi-Con | CAP ALUM 680UF 20% 10V RADIAL | 100% | View |
| B43504H2687M62 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 95% | View |
| B43505A2687M82 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 86% | View |
| LGW2E681MELB30 | Nichicon | CAP ALUM 680UF 20% 250V SNAP | 79% | View |
| 63TXW680MEFC10X50 | Rubycon | CAP ALUM 680UF 20% 63V RADIAL | 74% | View |
| EEU-FK1V681L | Panasonic Electronic Components | CAP ALUM 680UF 20% 35V RADIAL TH | 60% | View |
