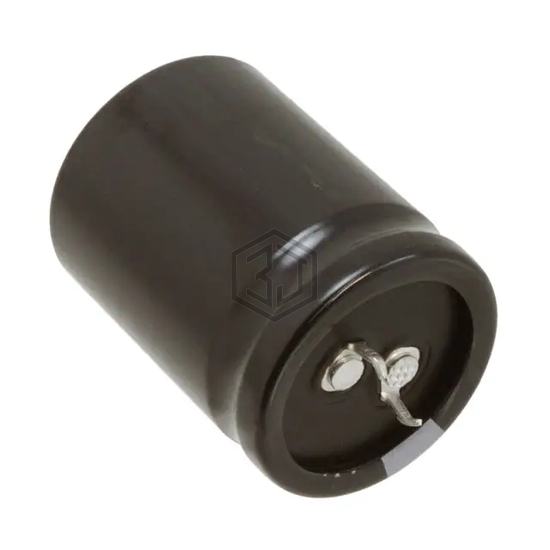

CAP ALUM 470UF 20% 400V SNAP
LGG2G471MELB40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 7,761
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2165 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH401VEN471MA35S | United Chemi-Con | CAP ALUM 470UF 20% 400V SNAP | 100% | View |
| LGN2V471MELC30 | Nichicon | CAP ALUM 470UF 20% 350V SNAP | 91% | View |
| B43252F2477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 250V SNAP | 83% | View |
| 160MXC470MEFCSN20X35 | Rubycon | CAP ALUM 470UF 20% 160V SNAP | 76% | View |
| EPAG201ELL471MM40S | United Chemi-Con | CAP ALUM 470UF 20% 200V RADIAL | 75% | View |
| 477KBM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 50V RADIAL | 57% | View |
