CAP ALUM 180UF 20% 400V SNAP

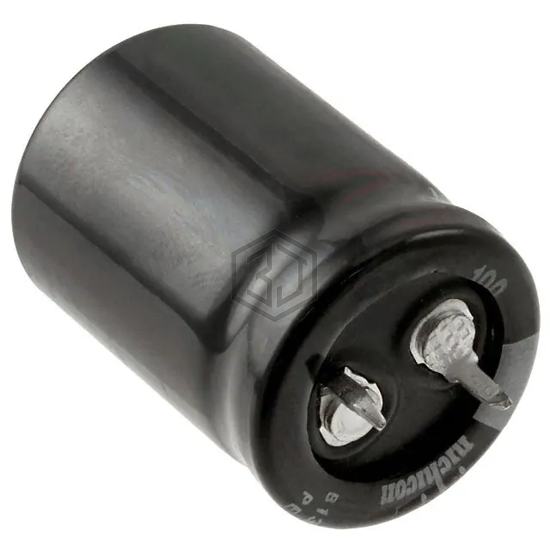

LGG2G181MELZ30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 4,251
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 730 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0439 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LQSW6181MELZ40 | Nichicon | CAP ALUM 180UF 20% 420V SNAP | 88% | View |
| LGU2G181MELC | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 86% | View |
| B43252G2187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 250V SNAP | 78% | View |
| 187LMX450M2ED | Cornell Dubilier / Illinois Capacitor | CAP ALUM 180UF 20% 450V SNAP | 77% | View |
| 220KXF180MEFC22X20 | Rubycon | CAP ALUM 180UF 20% 220V SNAP | 76% | View |
| MAL219316181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 400V SNAP | 70% | View |
Submit your RFQ for LGG2G181MELZ30 and get a quote within 24 hours.
