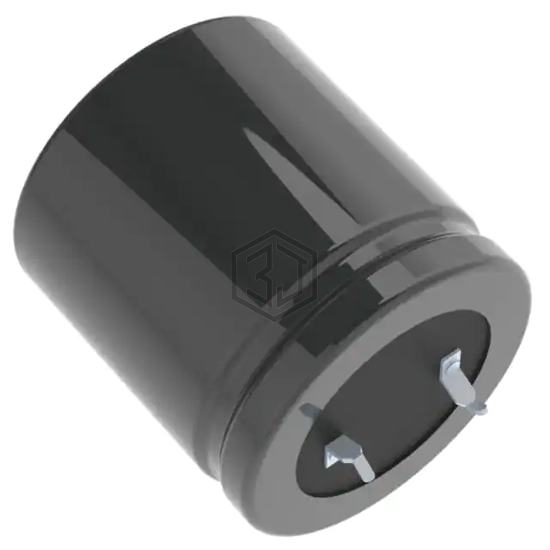

CAP ALUM 82UF 20% 420V SNAP
LASW6820MELA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 9,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 640 mA @ 120 Hz |
| Ripple Current @ High Frequency | 736 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A5826M2 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 450V SNAP | 94% | View |
| B43504A9826M82 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 400V SNAP | 93% | View |
| 420HXW82MEFR14.5X30 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 92% | View |
| 450QXW82MEFR12.5X45 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 92% | View |
| B43252D6826M | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 500V SNAP | 88% | View |
| MAL225916829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 400V SNAP | 85% | View |
Submit your RFQ for LASW6820MELA25 and get a quote within 24 hours.
