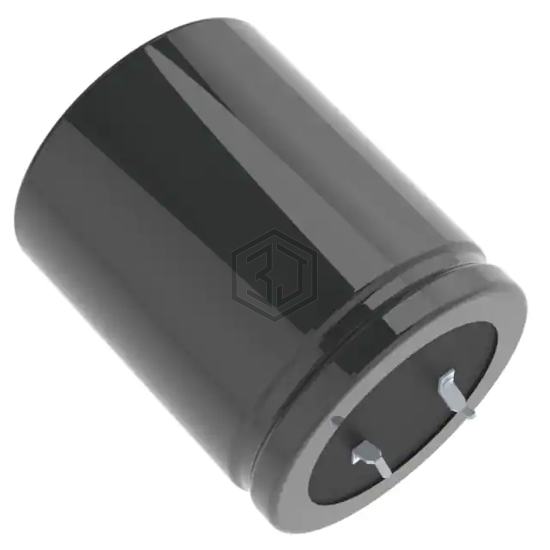

CAP ALUM 220UF 20% 420V SNAP
LASW6221MELB35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 6,439
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.15 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LAK2G221MELB35 | Nichicon | CAP ALUM 220UF 20% 400V SNAP | 93% | View |
| LSG221M2V---3030S | Surge | CAP ALUM 220UF 20% 350V SNAP IN | 88% | View |
| 381LX221M315H032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 315V SNAP | 87% | View |
| LSM221M2G---2250S | Surge | CAP ALUM 400V POLAR | 86% | View |
| 350VXS220MEFC30X25 | Rubycon | CAP ALUM 220UF 20% 350V SNAP | 75% | View |
| MAL211828221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V AXIAL | 52% | View |
Submit your RFQ for LASW6221MELB35 and get a quote within 24 hours.
