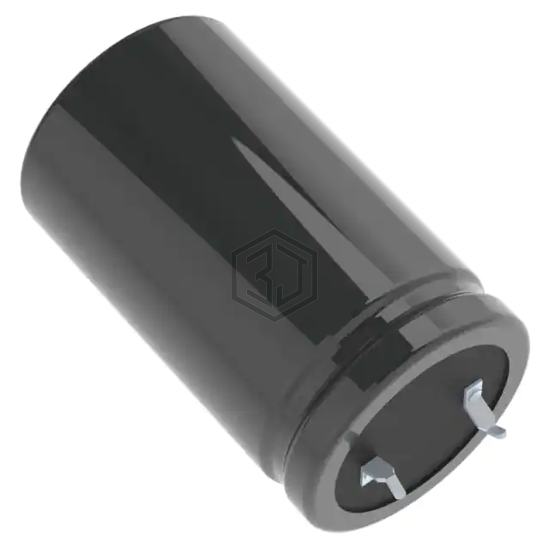

CAP ALUM 120UF 20% 420V SNAP
LASW6121MELZ35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 2,211
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 862.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX121M450H032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 450V SNAP | 96% | View |
| UPHW6121MHD | Nichicon | CAP ALUM 120UF 20% 420V RADIAL | 92% | View |
| B43252C5127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 450V SNAP | 91% | View |
| EKHF401ELL121MU35S | Chemi-Con | CAP ALUM 120UF 20% 400V RADIAL | 91% | View |
| MAL219379121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 500V SNAP | 68% | View |
| B41890A7127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 35V RADIAL | 68% | View |
Submit your RFQ for LASW6121MELZ35 and get a quote within 24 hours.
